Adoption of In-Place Pod Resource Updates in Gardener

As Kubernetes workloads evolve, the need for dynamic resource adjustments becomes increasingly critical. Traditional Pod resource updates require Pod recreation, leading to increased operational costs and potential service disruptions. To address this shortcoming, Kubernetes introduced a new way of updating Pod resources in-place, without the need to evict workloads in order to apply the configuration change. With the v1.27 release, a new resize subresource got introduced to the Pod's API, acting as an interface to the underlying CRI implementations that manage the cgroups settings.

What are the key benefits of in-place Pod resource updates?

Having the ability to bypass the rollout process when updating Pod resources drastically improves the scaling efficiency. Eliminating the overhead of Pod scheduling and application initialization is among the primary benefits of the new update mechanism. The following points summarize the key factors when considering using in-place updates:

• Zero-downtime scaling: Resources are adjusted without Pod recreation or service interruption
• Reduced scheduling overhead: No need to re-schedule Pods across the cluster
• Reduced initialization overhead: Applications do not go through full initialization all over again
• Preserved Pod identity: Pod names, IPs, and volumes remain unchanged
• Improved resource efficiency: More granular and responsive resource optimization

To read more about the feature, refer to the official documentation.

How does Gardener utilize the new update mechanism?

Gardener relies heavily on the Vertical Pod Autoscaler to advance the resource usage optimization and keep the out-of-the-box components running as efficiently as possible. With the v1.4.0 release, Vertical Pod Autoscaler introduced the ability to configure a new .spec.updatePolicy.updateMode for the VerticalPodAutoscaler resources:

apiVersion: autoscaling.k8s.io/v1
kind: VerticalPodAutoscaler
metadata:
  name: demo-vpa
spec:
  targetRef:
    apiVersion: "apps/v1"
    kind:       Deployment
    name:       demo
  updatePolicy:
    updateMode: "InPlaceOrRecreate"

effectively performing in-place resource updates and falling back to eviction in case of failure. Adopting this release created the opportunity to leverage the new update mechanism, and with Gardener v1.137, a new automatic migration mechanism was introduced.

Historically, VerticalPodAutoscaler resources, created for the different Gardener components, were configured to use update mode Auto as it was the default option that mimics the behavior of Recreate - evicting Pods to apply newly calculated resource recommendations. The subsequent Vertical Pod Autoscaler v1.5.0 release deprecated the Auto update mode, leaving only two viable options for continuous scaling: Recreate and InPlaceOrRecreate. The following graph illustrates the flow of Pod resource updates used in Gardener:

graph LR
    A[VPA Recommender] -->|new recommendation| B[VPA Updater]
    B -->|PATCH /resize subresource| C[API Server]
    C -->|sends update request| D[Kubelet]
    D -->|sends update request| E[CRI Runtime]
    E -->|updates cgroups| F[Running Container]
    F -->|updates status| D
    D -->|updates Pod status| C

The key functionality behind this improved resource management is Linux cgroups, which are responsible for grouping processes and limiting the host resources they can utilize.

How are VerticalPodAutoscaler resources configured?

Like any cluster-wide configuration change, migrating the VerticalPodAutoscaler resources' update mode presented a unique challenge that solved this by leveraging the Gardener Resource Manager and its extensible architecture.

We developed a dedicated MutatingWebhook that automatically filters relevant VerticalPodAutoscaler resources and applies the update mode change, making the migration seamless. The webhook is deployed through the VPAInPlaceUpdates feature gate (available in both gardenlet and Gardener Operator). We also built a rollback mechanism to ensure safety—if the feature gate is disabled, migration scripts automatically revert the update mode changes during gardenlet or operator initialization. These changes have been available since Gardener v1.137, making in-place update mode adoption fully operational and ready for production use.

For detailed information on usage and enablement, refer to the official documentation.

Monitoring

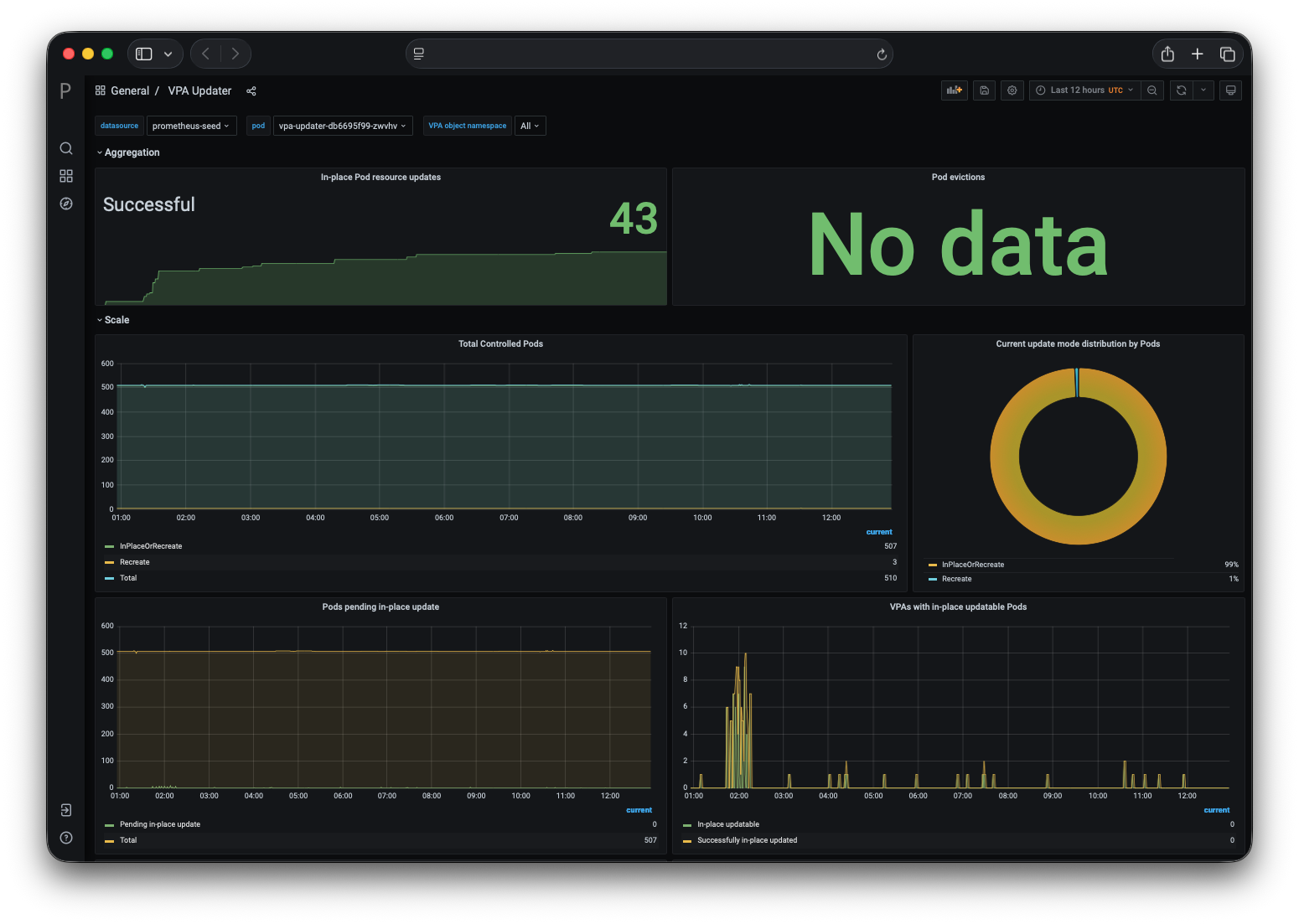

Performing configuration migrations can become an exhausting task without a convenient dashboard to evaluate the process state. For this reason, as part of the effort to support in-place Pod resource updates, we introduced a brand new dashboard for the vpa-updater component.

With sections covering VerticalPodAutoscaler resource overviews (segregated by update mode) and panels displaying success rates per resource, the new dashboard can be used for both monitoring and generating status reports on applied resource recommendations.

References

The following list of references can be used for further reading and technical deep dives into the topic.

Kubernetes Documentation

• In-Place Pod Resize (GA in v1.35)
• Resize Container Resources
• Pod v1 API Reference - resize subresource

Vertical Pod Autoscaler

• VPA v1.4.0 Release Notes (introduced InPlaceOrRecreate)
• VPA v1.5.0 Release Notes (deprecated Auto mode)
• VPA In-Place Updates Documentation

Gardener Documentation

• Usage: In-Place Resource Updates
• Operations: Enabling In-Place Resource Updates
• Gardener Resource Manager
• Gardener v1.137.0 Release Notes

Technical Deep Dives

• Linux cgroups v2
• CRI (Container Runtime Interface) Specification
